HOME >> ADXV Series

ADXV Series

Small, compact, and powerful, the ADXV Series DAS is designed with the most efficient and modular architecture design in mind to deliver the best wireless coverage and capacity for medium to large venues.

​

ADXV Series DAS. Simply Incredible. Incredibly Simple.

ADXV_HeadEnd Facing Left.png

SIMPLE

Simple to design, commission and maintain.

MODULAR

Discrete cards for each band enabled cost-optimized and future proof solutions.

FLEXIBLE

Wide rage of output power ideal for single carrier and neutral host applications.

COMPACT

Greater space efficiency within the telecom closet.

ADXV DAS Benefits

ADXV DAS Components

ADXV HE

(Head End)

ADXV LPR

(Low-Power Remote)

ADXV MPR

(Mid-Power Remote)

ADXV HPR

(High-Power Remote)

N4 Front View Open PNG RED 1.png

ADXV HE

(Public Safety Head End)

ADXV-R-3378P-U2-FRT Cropped 1.png

ADXV PS MPR

(700/800 MHz PS Remote)

ADXV-R-3378P-U2-FRT Cropped 1.png

ADXV PS MPR

(VHF/UHF PS Remote)


ADXV HE (Head End)

  • Supports power sharing of multiple carriers’ signals via configurable grouped POI

  • Supports 600 MHz, 700 MHz + Band14, 700 MHz APT, Cellular + SMR 800, PCS, AWS, WCS, BRS (TD-LTE/5GNR or FDD-LTE), C-band, and DoD

  • Daisy-chain and monitor up to 3 Head Ends from a single point of interface

  • Web-based GUI and connectivity via DHCP (in host mode); no 3rd party GUI software required

  • Supports dry contact alarming

  • Both AC and DC power supply options available

  • SMBL (snap-on) interconnections for quick installation

​

LPR Components Stacked.png

ADXV LPR (Low-Power Remote)

  • 17dBm of downlink composite output power for 600 MHz, 700 MHz (Commercial), and Cellular + SMR800

  • 20dBm of downlink composite output power for PCS, AWS, WCS, and BRS

  • 23dBm of downlink composite output power for C-Band (5GNR)

  • Fiber to the edge

  • IP66 rating without any additional chassis

  • Supports communication and power from Primary to Secondary Unit

  • Optical Coupler to feed two Primary units with one strand of fiber from hub

ADXV MPR (Mid-Power Remote)

  • 33dBm of downlink composite output power for 600 MHz, 700 MHz APT, 700 MHz (Commercial), 700 MHz (Commercial) + B14, Cellular + SMR800, and 700 + 800 MHz Public Safety

  • 37dBm of downlink composite output power for PCS, AWS, WCS, and C-Band (5GNR)

  • 33dBm of downlink composite output power for BRS (TD-LTE/5GNR) w/ 194MHz support

  • 25dBm of downlink composite output power for VHF + UHF - IP66 rating without any additional chassis

  • 30dB coupling test ports on each individual remote module - Both AC and DC power supply options are available


ADXV HPR (High-Power Remote)

  • 43dBm of downlink composite output power for 600MHz, 700 MHz (Commercial), 700 MHz (Commercial) + B14, and Cellular + SMR800, and BRS (TD-LTE/5GNR) w/ 194MHz support

  • 46dBm of downlink composite output power for PCS, AWS, BRS (FDD-LTE), and C-Band (5GNR)

  • 45dBm of downlink composite output power for WCS - IP66 rating without any additional chassis

  • 40dB coupling test ports on each individual remote module - Both AC and DC power supply options are available

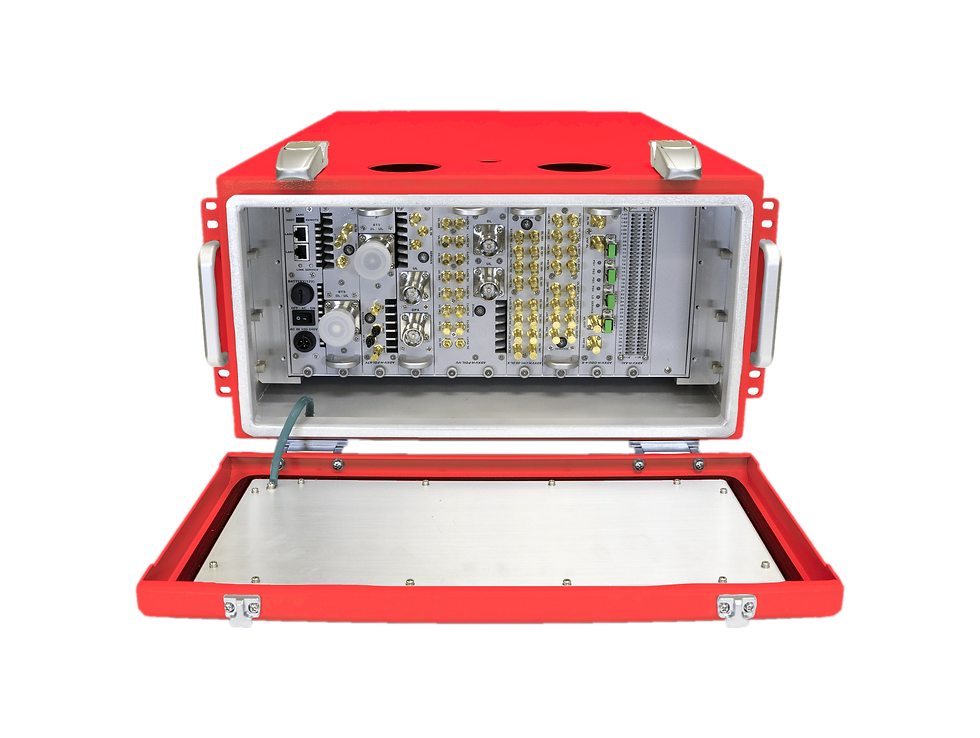

​ADXV HE (Public Safety Head End)

  • 100 to 240V AC input.

  • Daisy-chain multiple NMS to configure/monitor from a single point of interface

  • Supports battery backup unit

  • Supports up to 10 POI, POIL, ODU, or CHC standard size modules

  • Supports TCP/IPv4 and TCP/IPv6

  • SNMP v1, v2c, and v3 (get, set, & trap)

  • NEMA4 rated

  • 19” rack mount (mid or front) or wall mount solution

N4 Front View Open PNG RED 1.png

ADXV 700/800 MHz Public Safety Remote

  • Support of 758-775 MHz and 851-869 MHz

  • Support of Canadian public safety frequencies (768 - 776 MHz and 851-869 MHz)

  • 33 dBm Composite Output Power

  • Dry Contact Alarming

  • Built-in Spectrum Analyzer

  • Detachable AC/BATT/ANN/AAI wiring terminal blocks for easy installation

  • Separate 700/800 MHz downlink (DL) amplifiers to prevent noise from the unused band

  • Programmable 3-pin AAI alarm which can be physically cabled as NO or NC

  • An optional 47K Ohm end-of-line resistor board cartridge

ADXV-R-25VU-U2-FRT Cropped 1.png

ADXV VHF/UHF Public Safety Remote

  • Support of 138-174MHz and 380-512 MHz frequencies

  • 25 dBm Composite Output Power

  • Dry Contact Alarming

  • Built-in Spectrum Analyzer

  • Detachable AC/BATT/ANN/AAI wiring terminal blocks for easy installation

  • Support of up to 2 ADRF-BPF-V/U-1 Bandpass Filters or 1 ADRF-MPLX-V/U multiplexer

  • Programmable 3-pin AAI alarm which can be physically cabled as NO or NC

  • An optional 47K Ohm end-of-line resistor board cartridge
