ALL-IN-ONE
Repeater and fiber DAS Head End (HE) in a single unit.
CODE COMPLIANT
NFPA, IFC, UL Certified and Compliant.
COST EFFECTIVE
All equipment in an IP66 rated enclosure and no additional enclosures are needed.
FiRe Benefits
FiRe Series Products
FiRe-78-8-U
FiRe-OEU-U
ADXV PS MPR
(700/800 MHz PS Remote)
FiRe-78-8-U
-
Channelized 700/800 MHz Repeater and fiber DAS Head End (HE) in a single unit.
-
Adheres to NFPA/IFA Code
-
Certified to UL 2524, Second Edition by Underwriters Laboratories.
-
Up to 32 narrowband and 2 wideband channel support for PS 700 (including Band 14) or PS 800.
-
Natively supports up to 8 Remote Units or 36 Remote Units in combination with OEU.
-
Oscillation detection feature with automatic amplifier shutdown routine.
-
Supports up to 33 dBm composite output power per Remote Unit (sold separately).
-
Type 4 / NEMA 4 Enclosure.
-
Supports dry contact alarming and up to 24 hours of battery backup (sold separately).
-
Alarming output to supervised circuits for antenna, amplifier, AC or DC power supply, battery, and charger failure.
-
Supports up to two PSR-ANN-L annunciators to provide visual and audible alarms.
FiRe-OEU-U
-
Certified to UL 2524, Second Edition by Underwriters Laboratories.
-
Expands support by 8 additional RU per OEU
-
Supports dry contact alarming for Remote Summary and FiRe-OEU
-
Supports an optional PSR-ANN-L annunciator
-
Supports battery backup

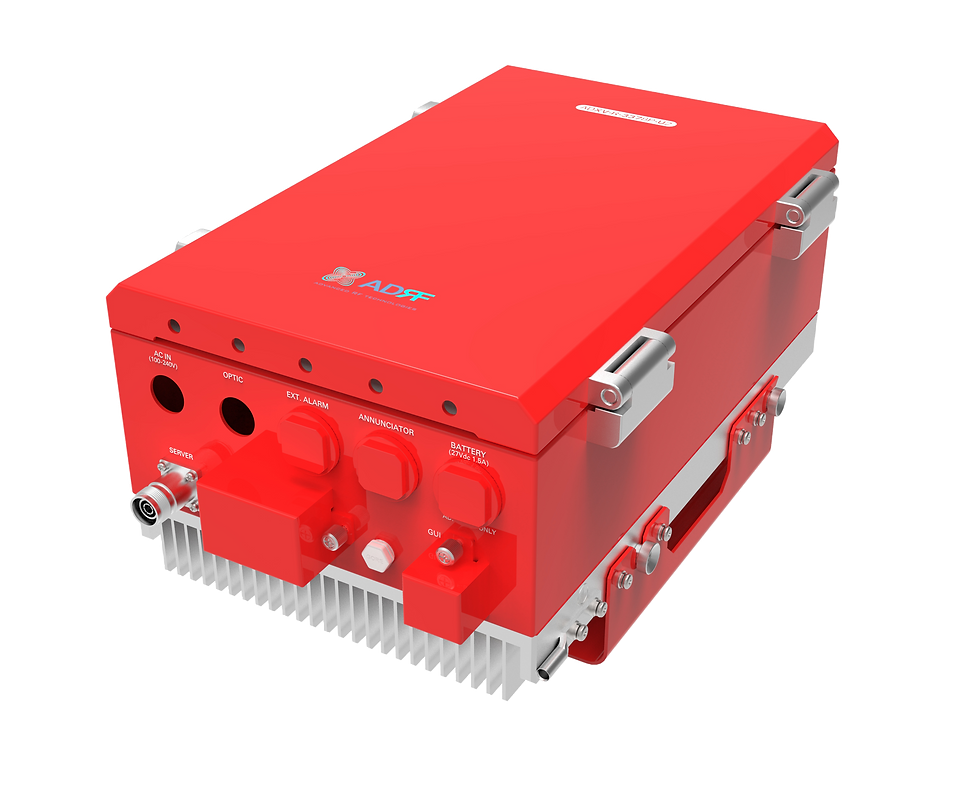

700/800 MHz Public Safety Remote
-
Support of 758-775 MHz and 851-869 MHz
-
Support of Canadian public safety frequencies (768 - 776 MHz and 851-869 MHz)
-
33 dBm Composite Output Power
-
Dry Contact Alarming
-
Built-in Spectrum Analyzer
-
Detachable AC/BATT/ANN/AAI wiring terminal blocks for easy installation
-
Separate 700/800 MHz downlink (DL) amplifiers to prevent noise from the unused band
-
Programmable 3-pin AAI alarm which can be physically cabled as NO or NC
-
An optional 47K Ohm end-of-line resistor board cartridge
