Splitters

ADRF’s splitters separate or combine the RF signals between two or more cable paths, evenly distributing high-power signals with minimal reflections or loss.

ADRF Splitters

ADRF-2WS/3WS

4WS-20W-4310

ADRF-2WS/3WS

4WS-20W-N-LPIM

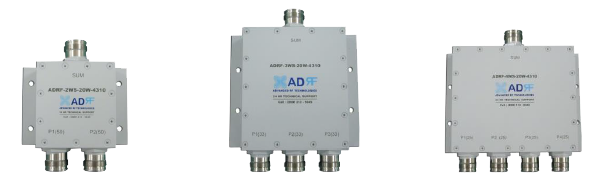

Power Splitter With 4.3-10 Female Connector

(ADRF-2WS/3WS/4WS-20W-4310)

  • Frequency Range: 578 ~ 2,700 MHz

  • Passive Intermodulation: 161dBc @ 2 tone x 43dBm

  • Insertion Loss (Max): 3.6 / 5.5 / 7.0 dB

  • Impedance: 50 Ω

  • Power Rating: 20W (Max)

  • Connector: 4.3-10 Female

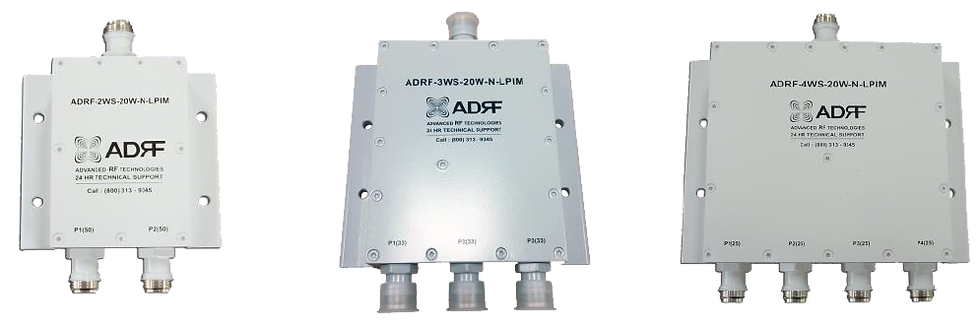

Power Splitter With N Female Connector

(ADRF-2WS/3WS/4WS-20W-N-LPIM)

  • Frequency Range: 690 ~ 2,700 MHz

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Insertion Loss (Max): 3.6 /5.5 / 7.0 dB

  • Impedance: 50 Ω

  • Power Rating: 20W (Average)

  • Connector: N Female – N Female
